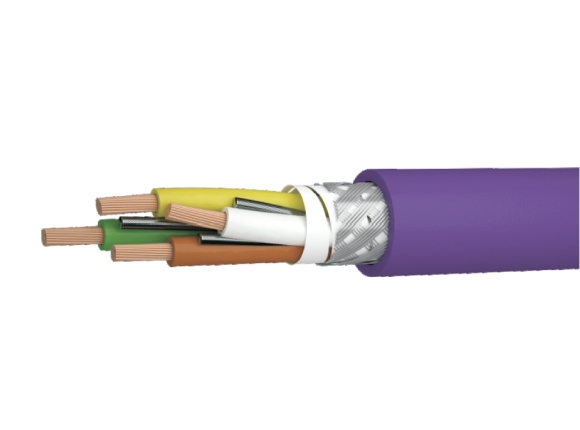

HONGTU BUS CANBUS TP
Used in multiple bus systems, automation technology, integrated control, controllers and other fields' erected networks, such as textile industry, construction machinery industry, and medical industry. Suitable for fixed application or occasional movement.
Product Details
Application
Used in multiple bus systems, automation technology, integrated control, controllers and other fields' erected networks, such as textile industry, construction machinery industry, and medical industry. Suitable for fixed application or occasional movement.
Cable Structure
| Conductor | Stranded bare copper |
| Isulation | Foamed PE |
| Isulation Color | According to DIN47100 |
| Shielding | Tinned copper braid |
| Jacket | PVC |
| Jacket Color | Purple (Approximate RAL4001) |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6105001 | 1X2X0.22 | PVC | 5.9 | 14.0 | 44.0 |
| HT6105013 | 2X2X0.22 | PVC | 7.7 | 27.3 | 72.7 |
| HT6105003 | 1X2X0.34 | PVC | 7.1 | 21.9 | 56.9 |
| HT6105004 | 2X2X0.34 | PVC | 7.5 | 33.3 | 71.5 |
| HT6105005 | 1X2X0.50 | PVC | 7.6 | 24.8 | 68.3 |
| HT6105014 | 1X2X0.75 | PVC | 8.8 | 34.9 | 91.7 |
Features
Flame retardancy complies with IEC60332-1-2. Stable transmission performance. Suitable for fixed installation or occasional movement. Good resistance to external electromagnetic interference.
Technical parameters
| Temperature Range | Fixed application: -40℃~80℃; Occasional movement: -40℃~80℃ |
| Test Voltage | 2000V/min(AC) |
| Characteristic Impedance | 120±15Ω@1MHz |
| Rated Voltage | 300V |
