Industrial Bus Cables

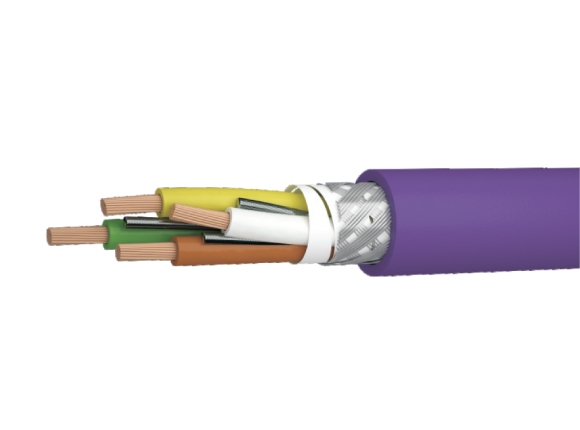

HONGTU BUS CANBUS HF
Used in various bus systems, and applied in rack networks for automation technology, integrated control, controllers and other fields, such as textile industry, construction machinery industry, medical industry. Suitable for drag chain applications or frequent mobile use.
Product Details
Application
Used in various bus systems, and applied in rack networks for automation technology, integrated control, controllers and other fields, such as textile industry, construction machinery industry, medical industry. Suitable for drag chain applications or frequent mobile use.
Cable Structure
| Conductor | Fine-stranded bare copper |
| Isulation | Foamed PE |
| Isulation Color | According to DIN47100 |
| Shielding | Tinned copper braid |
| Jacket | PUR |
| Jacket Color | Purple (Approximate RAL4001) |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6105022 | 4x0.75 | PUR | 9.0 | 54.1 | 109.3 |
| HT6105021 | 4X0.50 | PUR | 7.9 | 40.1 | 84.3 |
Features
Flame retardancy complies with IEC60332-1-2. Stable transmission performance. Star-quad structure has a smaller cable outer diameter. Good resistance to external electromagnetic interference. Halogen-free. Especially resistant to oil, abrasion and hydrolysis.
Technical parameters
| Temperature Range | Fixed application: -40℃~80℃; Mobile application: -5℃~60℃ |
| Test Voltage | 2000V/min(AC) |
| Characteristic Impedance | 120±15Ω@1MHz |
| Rated Voltage | 300V |
| Mininum Bending Radius | Fixed application: 10D (D=cable diameter); Occasional movement: 15D (D=cable diameter) |
