Industrial Bus Cables
HONGTU BUS RS-485
Compliant with RS-485 communication protocol, suitable for complex industrial automation control network communication and building automation network communication.
Product Details
Application
Compliant with RS-485 communication protocol, suitable for complex industrial automation control network communication and building automation network communication.

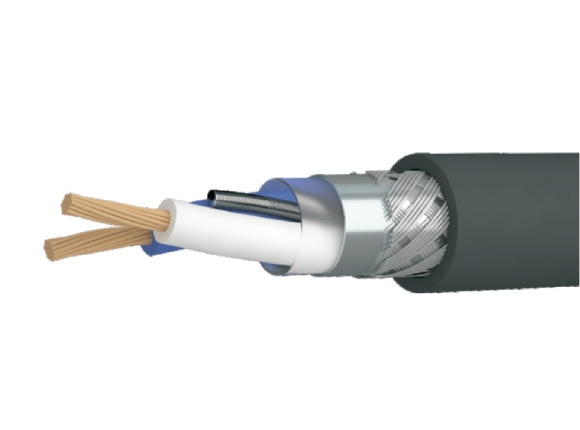

Cable Structure
| Conductor | Stranded bare copper |
| Isulation | Foamed PE |
| Shielding | Aluminum foil shielding with tinned copper braid |
| Jacket | PVC |
| Jacket Color | Black |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6107008 | 2X2X0.22 | PVC | 7.2 | 27.8 | 69.2 |
| HT6107007 | 1X2X0.22 | PVC | 5.9 | 17.9 | 48.6 |
Features
Flame retardancy complies with IEC60332-1-2. Stable transmission performance. Suitable for fixed application or occasional movement. Good resistance to external electromagnetic interference.
Technical parameters
| Temperature Range | Fixed application: -40℃~80℃; Mobile application: -5℃~60℃ |
| Test Voltage | 1500V/min(AC) |
| Characteristic Impedance | 120±15Ω@1MHz |
| Mininum Bending Radius | Fixed application: 8D (D=cable diameter); Occasional movement: 15D (D=cable diameter) |
