Industrial Bus Cables

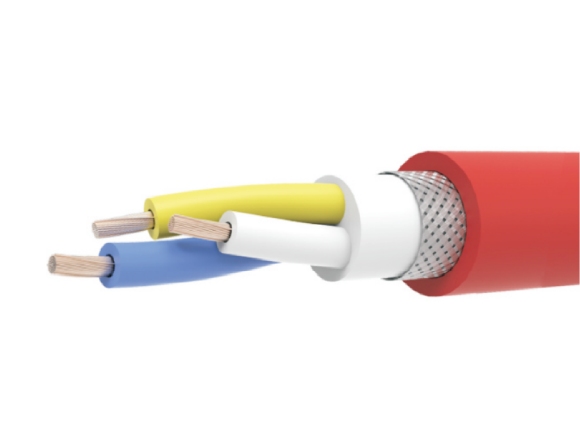

HONGTU BUS CC-Link
CC-LINK bus system is used in sensor and actuator testing, enabling high-speed processing control and information data transmission, and is applicable for automotive industry, hotel monitoring and other places. Suitable for fixed application or occasional movement.
Product Details
Application
CC-LINK bus system is used in sensor and actuator testing, enabling high-speed processing control and information data transmission, and is applicable for automotive industry, hotel monitoring and other places. Suitable for fixed application or occasional movement.
Cable Structure
| Conductor | Stranded bare copper |
| Isulation | Foamed PE |
| Isulation Color | White, Blue, Yellow |
| Shielding | Aluminum foil shielding with tinned copper braid |
| Jacket | Refer to the following table |
| Jacket Color | Red |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6103005 | 3X20AWG | PVC | 7.7 | 35.7 | 82.5 |
Features
Flame retardancy complies with IEC60332-1-2. Good resistance to external electromagnetic interference. Stable transmission performance.
Technical parameters
| Temperature Range | Fixed application: -40℃~80℃; Occasional movement: 5℃~60℃ |
| Test Voltage | 2000V/min(AC) |
| Characteristic Impedance | 110±15Ω@1MHz |
| Rated Voltage | 300V |
| Mininum Bending Radius | Fixed application: 10D (D=cable diameter); Occasional movement: 15D (D=cable diameter) |
