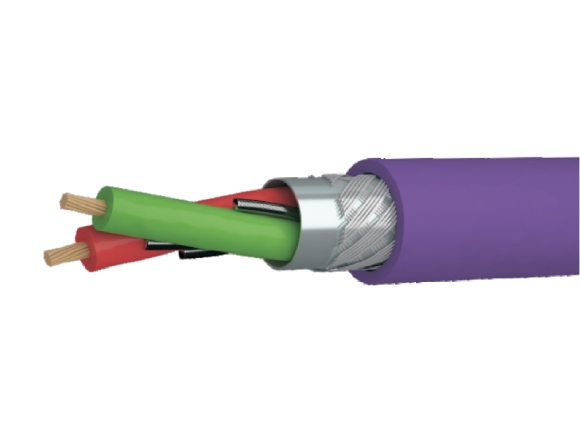

HONGTU BUS PROFIBUS-PA
PROFIBUS-PA cable is used in industrial fieldbus systems of automation and communication technologies, mostly applied in areas with explosion hazards and are suitable for fixed installations. As economical-type cables, it helps reduce laying costs.
Product Details
Application
PROFIBUS-PA cable is used in industrial fieldbus systems of automation and communication technologies, mostly applied in areas with explosion hazards and are suitable for fixed installations. As economical-type cables, it helps reduce laying costs.
Cable Structure
| Conductor | Stranded bare copper |
| Isulation | Foamed PE |
| Isulation Color | Blue, Orange |
| Shielding | F/UTP: Aluminum foil wrapping; SF/UTP: Aluminum foil wrapping with tinned copper braiding |
| Jacket | Refer to the following table |
| Jacket Color | Purple (Approximate RAL4001) |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6102019 | F/UTP 1X2X18AWG/7 | PVC | 7.0 | 20.0 | 58.9 |
| HT6102020 | F/UTP 1X2X18AWG/7 | LSZH | 7.0 | 20.0 | 58.8 |
Features
Aluminum foil overall shielding provides good resistance to external electromagnetic interference. LSZH jacket. Economical-type cable. Smaller outer diameter. Flame retardancy complies with IEC60332-1-2.
Technical parameters
| Temperature Range | PVC: -20℃~70℃; LSZH: -40℃~80℃ |
| Test Voltage | 2000V/min(AC) |
| Characteristic Impedance | 100±20Ω@3-20MHz |
| Conductor DC Resistance (20℃) | ≤55Ω/km |
| Rated Voltage | 300V |
| Mininum Bending Radius | Fixed application: 10D (D=cable diameter) |
