Industrial Bus Cables

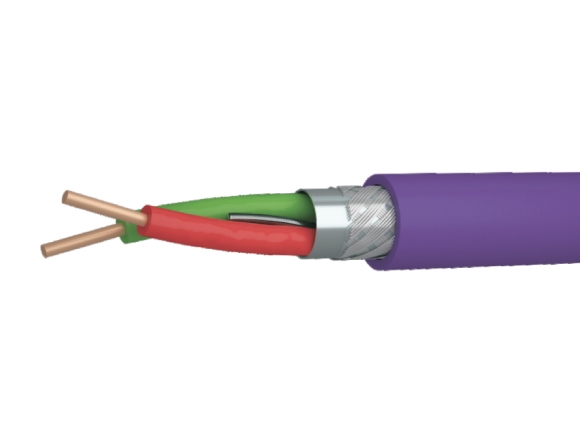

HONGTU BUS PROFIBUS-DP
PROFIBUS-DP cable is used in industrial fieldbus systems of automation and communication technologies, suitable for fixed-installation applications.
Product Details
Application
PROFIBUS-DP cable is used in industrial fieldbus systems of automation and communication technologies, suitable for fixed-installation applications.
Cable Structure
| Conductor |
Solid bare copper |
| Isulation |
Foamed PE
|
| Isulation Color |
Red, Green |
| Shielding
|
Aluminum foil wrapping with tinned copper braiding
|
| Jacket |
Refer to the following table
|
| Jacket Color |
Purple (Approximate RAL4001) |
| Product
Code |
Specification |
Jacket
|
Cable
OD（mm） |
Copper
Content(kg/km) |
Cable
N/W(kg/km) |
| HT 6102001 |
1X2X22AWG/1 |
PVC |
7.8 |
16.0 |
65.8 |
Features
Flame retardancy complies with IEC60332-1-2. Good resistance to external electromagnetic interference.
Technical parameters
| Temperature Range |
PVC: -20℃~70℃ LSZH: -40℃~80℃
|
| Test Voltage |
2000V/min(AC)
|
| Characteristic Impedance |
150±15Ω@3-20MHz
|
| Conductor DC Resistance (20℃)
|
≤55Ω/km
|
| Rated Voltage
|
300V
|
| Mininum Bending Radius |
Fixed application: 10D (D=cable diameter) |
| Product
Code |
Specification |
Jacket
|
Cable
OD（mm） |
Copper
Content(kg/km) |
Cable
N/W(kg/km) |
| HT 6102010 |
1X2X22AWG/1 |
LSZH |
7.8 |
16.0 |
65.8 |
