Industrial Bus Cables

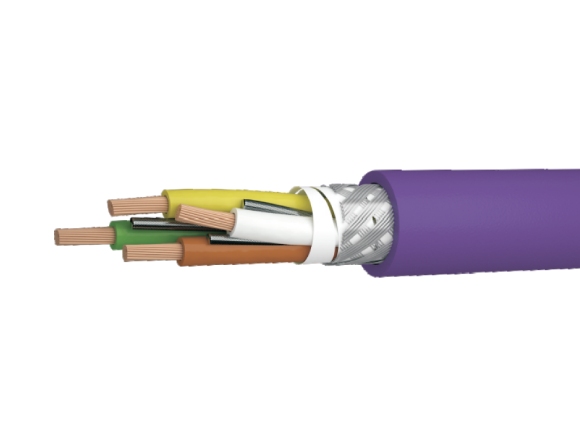

HONGTU BUS CANBUS
Used in various bus systems, and applied in rack networks for automation technology, integrated control, controllers and other fields, such as textile industry, construction machinery industry, medical industry. Suitable for fixed application or occasional movement.
Product Details
Application
Used in various bus systems, and applied in rack networks for automation technology, integrated control, controllers and other fields, such as textile industry, construction machinery industry, medical industry. Suitable for fixed application or occasional movement.
Cable Structure
| Conductor | Stranded bare copper |
| Isulation | Foamed PE |
| Isulation Color | According to DIN47100 |
| Shielding | Tinned copper braid |
| Jacket | PVC |
| Jacket Color | Purple (Approximate RAL4001) |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6204007 | 1X2X0.25 | PUR | 6.3 | 16.0 | 48.0 |
| HT6204008 | 2X2X0.25 | PUR | 7.9 | 30.9 | 73.9 |
| HT6204009 | 1X2X0.34 | PUR | 7.0 | 25.9 | 55.9 |
| HT6204002 | 4X0.50 | PVC | 7.5 | 35.4 | 92.0 |
Features
Flame retardancy complies with IEC60332-1-2. Good resistance to external electromagnetic interference. Stable transmission performance. Star-quad structure has a smaller cable outer diameter.
Technical parameters
| Temperature Range | Fixed application: -40℃~80℃; Mobile application: -5℃~60℃ |
| Test Voltage | 2000V/min(AC) |
| Characteristic Impedance | 120±15Ω@1MHz |
| Rated Voltage | 300V |
| Mininum Bending Radius | Fixed application: 10D (D=cable diameter); Occasional movement: 15D (D=cable diameter) |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6204018 | 4X0.75 | PVC | 9.0 | 54.1 | 114.2 |
