Industrial Bus Cables
HONGTU BUS RS-485 HF
Compliant with RS-485 communication protocol, suitable for complex industrial automation control network communication and building automation network communication. Suitable for drag chain applications or frequent mobile use.
Product Details
Application
Compliant with RS-485 communication protocol, suitable for complex industrial automation control network communication and building automation network communication. Suitable for drag chain applications or frequent mobile use.

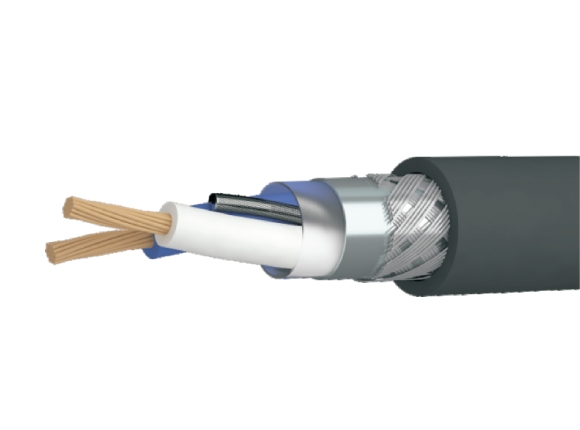

Cable Structure
| Conductor | Fine-stranded bare copper |
| Isulation | Foamed PE |
| Shielding | Aluminum foil shielding with tinned copper braid |
| Jacket | Refer to the following table |
| Jacket Color | Black |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6107009 | 1X2X0.25 | PVC | 6.0 | 19.8 | 49.4 |
| HT6107010 | 2X2X0.25 | PVC | 7.6 | 30.9 | 76.6 |
| HT6107004 | 1x2x0.25 | PUR | 6.0 | 19.8 | 46.9 |
| HT6107005 | 2x2x0.25 | PUR | 7.6 | 30.9 | 72.7 |
Features
Flame retardancy complies with IEC60332-1-2. Good resistance to external electromagnetic interference. PUR jacket provides outstanding resistance to oil, abrasion and hydrolysis. Halogen-free. Superior flexibility.
Technical parameters
| Temperature Range | Fixed application: -40℃~80℃; Mobile application: -5℃~60℃ |
| Test Voltage | 1500V/min(AC) |
| Characteristic Impedance | 120±15Ω@1MHz |
| Rated Voltage | 300V |
| Mininum Bending Radius | Fixed application: 8D (D=cable diameter); Mobile application: 15D (D=cable diameter) |
