HONGTU BUS PROFIBUS-DP HF

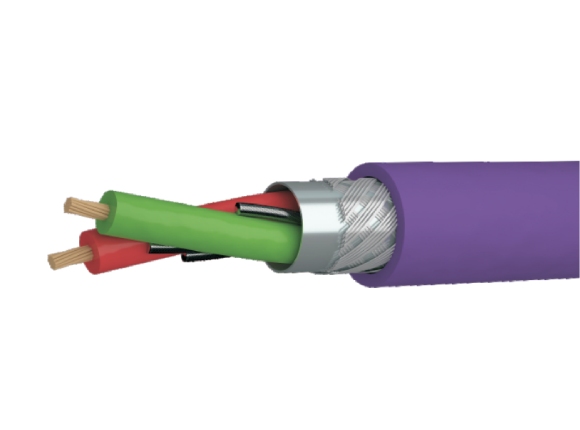

PROFIBUS-DP HF cable is used in industrial fieldbus systems of automation and communication technologies, especially suitable for flexible installation in dynamic drag chains, moving parts of machinery, and robot applications.
Product Details
Application
PROFIBUS-DP HF cable is used in industrial fieldbus systems of automation and communication technologies, especially suitable for flexible installation in dynamic drag chains, moving parts of machinery, and robot applications.
Cable Structure
| Conductor | Multi-strand bare copper |
| Isulation | Foamed PE |
| Isulation Color | Red, Green |
| Shielding | Aluminum foil wrapping with tinned copper braiding |
| Jacket | Refer to the following table |
| Jacket Color | Purple (Approximate RAL4001) |
| Product Code | Specification | Jacket | Cable OD (mm) | Copper Content (kg/km) | Cable N/W (kg/km) |
| HT6102032 | 1X2X22AWG/19 | PUR | 8.0 | 24.0 | 70.3 |
| HT6102043 | 1X2X22AWG/19 | PVC | 8.0 | 24.0 | 73.8 |
Features
PUR jacket provides outstanding resistance to oil, abrasion and hydrolysis. Good flexibility. Very small bending redius. Good resistance to external electromagnetic interference. Flame retardancy complies with IEC60332-1-2.
Technical parameters
| Temperature Range | Fixed application: -20℃~70℃; Mobile application: -40℃~80℃ |
| Test Voltage | 2000V/min(AC) |
| Characteristic Impedance | 150±15Ω@3-20MHz |
| Conductor DC Resistance (20℃) | ≤53Ω/km |
| Rated Voltage | 300V |
| Mininum Bending Radius | Fixed application: 10D (D=cable diameter); Mobile application: 15D (D=cable diameter) |
Can't find the exact construction?
Tell us the cross-section, sheath, length and application you need, and our engineers will tailor a cable to your specification.
